EM7345 150 Mbps DL 50 Mbps UL Data Rate LTE Network Type Sierra Wireless Cellular Device Providing Stable Wireless Connectivity

  • EM7345 150 Mbps DL 50 Mbps UL Data Rate LTE Network Type Sierra Wireless Cellular Device Providing Stable Wireless Connectivity
  • EM7345 150 Mbps DL 50 Mbps UL Data Rate LTE Network Type Sierra Wireless Cellular Device Providing Stable Wireless Connectivity
  • EM7345 150 Mbps DL 50 Mbps UL Data Rate LTE Network Type Sierra Wireless Cellular Device Providing Stable Wireless Connectivity
  • EM7345 150 Mbps DL 50 Mbps UL Data Rate LTE Network Type Sierra Wireless Cellular Device Providing Stable Wireless Connectivity
Place of Origin China
브랜드 이름 Sierra Wireless
Model Number EM7345
최소 주문 수량 100
가격 $7.00 - $16.00/pieces
포장 세부 사항 오리지널 브랜드-뉴.
배달 시간 2-5 영업일
지불 조건 신용장, 전신환
공급 능력 하루 10000 조각/조각
제품 상세 정보
네트워크 기술 LTE 전원공급장치 3.4~4.2V
지불 방법 페이팔 주파수 대역 B1(2100MHz)、B2(1900MHz)、B3(1800MHz)、B4(AWS)、B5(850MHz)、B7(2600MHz)、B8(900MHz)、B13/B17/B18/B19/B20
OS 지원 윈도우 7/8, 리눅스 인증 FCC, CE, GCF, PTCRB 등
GPS GPS, A-GPS, Glonass 지원 주 인터페이스 USB 2.0
메시지를 남겨주세요
제품 설명

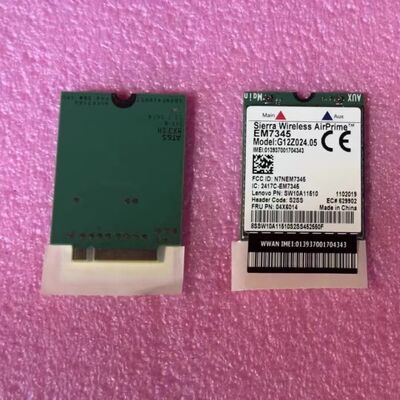

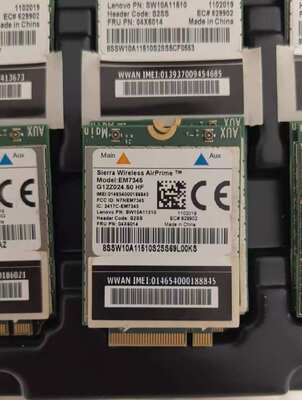

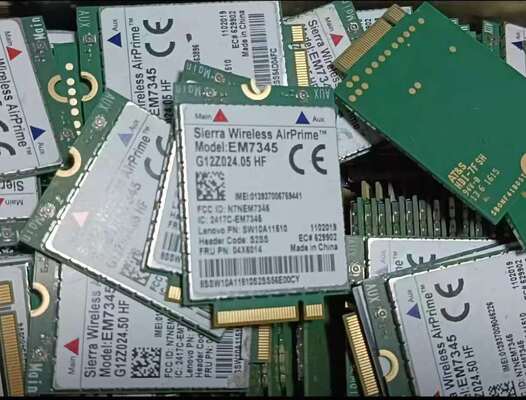

Sierra Wireless AirPrime EM7345 Datasheet


Sierra Wireless AirPrime EM7345 is a 4G LTE M.2 wireless communication module based on the Intel XMM 7160 platform. It is mainly used for mobile broadband in laptops, tablets and other devices, launched in 2014.


1. Core Specifications


  • Manufacturer: Sierra Wireless
  • Chipset Platform: Intel XMM 7160
  • Form Factor: M.2 2230 (PCIe), 52 pins
  • Dimensions: 42 × 30 × 2.3 mm
  • Power Supply: 3.4–4.2V
  • Operating Temperature: -10°C ~ +55°C


2. Network & Speed



LTE FDD Bands (Global, including mainstream Chinese bands)


  • B1 (2100MHz), B2 (1900MHz), B3 (1800MHz), B4 (AWS), B5 (850MHz), B7 (2600MHz), B8 (900MHz), B13/B17/B18/B19/B20


3G/2G


  • UMTS/HSPA+: 2100/1900/850/900/1700 MHz
  • GSM/GPRS/EDGE: Quad-band 850/900/1800/1900 MHz


Peak Data Rate


  • Downlink: 100 Mbps (LTE Cat.3)
  • Uplink: 50 Mbps


3. Interfaces & Features


  • Main Interface: USB 2.0
  • Others: SIM card interface, GPIO, I2C, UART, ADC
  • GNSS: Supports GPS, A-GPS, Glonass
  • Voice: No voice calling (data-only)
  • OS Support: Windows 7/8, Linux
  • Certifications: FCC, CE, GCF, PTCRB, etc.


4. Typical Applications

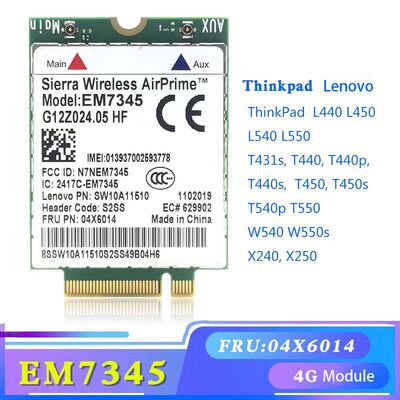

  • Built-in 4G WWAN for laptops (e.g. ThinkPad)
  • Mobile networking for industrial tablets, industrial PCs, POS terminals
  • IoT gateways, in-vehicle 4G data communication


5. Common FRU Part Numbers


  • 04X6014 (Universal version for ThinkPad)


6. Difference between EM7345 & EM7355


  • EM7345: Global version, supports B1/B3 (China Unicom/China Telecom 4G)
  • EM7355: North American version, does not support B1/B3
